| Place of Origin: | china |
|---|---|
| Brand Name: | tengda |
| Certification: | CE |
| Model Number: | PW-450E |
| Minimum Order Quantity: | 1set |
| Price: | Negotiable |
| Packaging Details: | wood |
| Delivery Time: | 20days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 50set/month |
| Finished Package Size: | 70-1000/30-170/5-80mm | Packaging Speed: | 5-230Bags/min |
|---|---|---|---|
| Power Specification: | 220V | Weight: | 500kg |
| Overall Size: | 3780-830-1700mm | ||
| High Light: | cake wrapping machine,wafer packing machine |
||

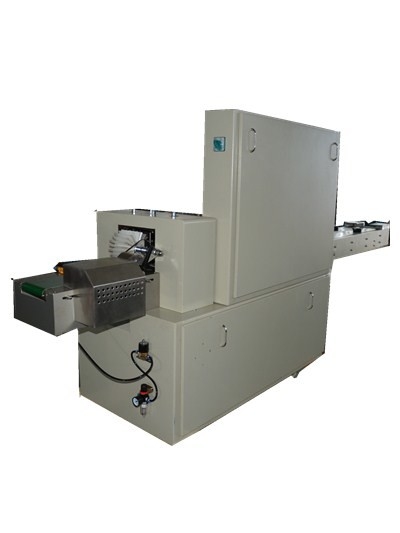

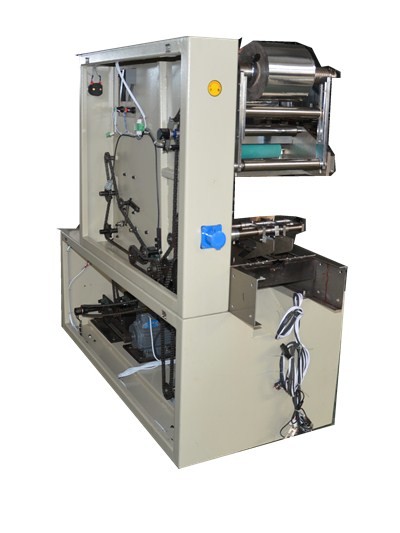

Cake packing machine High speed 5 - 230 Bags / min stainless steel applicable for
Chicken rolls
APPLICATIONS
Food : cake, bread, meat muffin, flaky pastry,biscuits, green bean cake, several sausage in a bag, noodles, beef jerky, egg roll, etc
Hardwares : hinge, stainless steel pipe, bearings , screw,nuts and washer, etc
Hotel supplies : Soap, disposable comb, tooth paste and brush in one set.
Stationary : pencil, eraser, notebook, paper card, adhensive tape
Electric products : battery, usb cable, earphone, user manual and accessories in one set.
Medical : mask, glove, gauze, capsule.
Daily use: plastic knife, fork, plate, sponge, scourer, wipes, several straws in a bag, cups, bottles, napkin etc.
Pricial capability and structural features:
1. Compact strure, stable function and simple operation. Self-checking function.
2. Double frequency converter controller, length of package will cutimmediately once setting, adjustment needless, saving time and film. .
3. Dependant temperature PID controlling suitable for various materials of packaging membrane.
4. It adopts imported electric appliance, touch man-machine interface, convenient parameter setting ,troubles can be read easily.
5. High sensor photoelectric color charttracking, make the cutting position more correctly.
Technical parameter:
| Finished package size(mm) | Length | 70-1000mm |
| Width | 30-170mm | |
| Height | 5-80mm | |
| Vertical and cross sealing strength (Nuton/mm2) | 15N／m㎡ | |
| Packaging speed (bag/minute) | 30-160Bags／min | |
| Packaging film width(mm) | 80-450mm | |
| Power specification | 220V 50／60Hz 3KVA | |
| Machine weight (kilogram) | 500kg | |
| Overall size (length * width * height) | 4400×830×1700mm | |
