| Place of Origin: | china |
|---|---|
| Brand Name: | tengda |
| Certification: | CE |
| Model Number: | PW-300A |
| Minimum Order Quantity: | 1set |
| Price: | Negotiable |
| Packaging Details: | woods |
| Delivery Time: | 30days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 50set/month |
| Packging Film Widh: | 5-230Bags/min | Overall Size: | 3780×640×1550mm |
|---|---|---|---|
| Material: | Stainless Steel | Sealing Strength: | ＞15 N/mm² |
| Machine Model: | PW-300A | Delivery: | Twenty Days |
| High Light: | horizontal wrapping machine,pillow type packing machine |
||

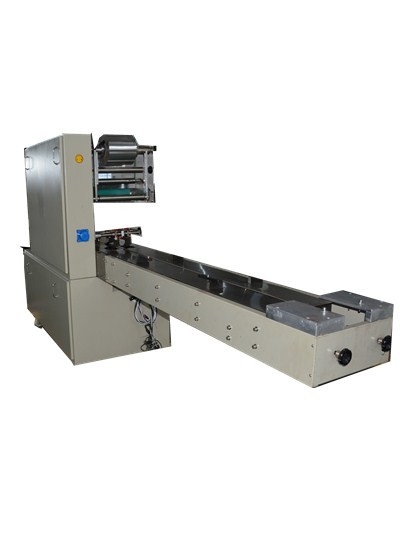

Horizontal 304 Stainless steel pillow packing machine speed 5 - 230 bags / min for small food like Chewing gum
Pricial capability and structural features:
1. The width of the composite membrane: within 85~300mm,Thickness: 0.45~0.7mm.
2. Double frequency converter controller, length of package will cutimmediately once setting, adjustment needless, saving time and film；It adopts imported electric appliance, touch man-machine interface, convenient parameter setting.
3. Self-checking function, troubles can be read easily. High sensor photoelectric color charttracking, make the cutting position more correctly.
4. Dependant temperature PID controlling suitable for various materials of packaging membrane.
5. Steady running speed of 80-100 packs / minutes.
6. Yield: no less than 99.5%, based on the continuous production and packaging of the pillow type packing machine.
technical parameters:
| Finished package size(mm) | Length | 40-500mm |
| Width | 30-110mm | |
| Height | 5-40mm | |
| Vertical and cross sealing strength (Nuton/mm2) | 15N／m㎡ | |
| Packaging speed (bag/minute) | 30-160Bags／min | |
| Packaging film width(mm) | 80-450mm | |
| Power specification | 220V 50／60Hz 3KVA | |
| Machine weight (kilogram) | 800kg | |
| Overall size (length * width * height) | 3780×640×1560mm | |
