| Place of Origin: | china |
|---|---|
| Brand Name: | tengda |
| Certification: | CE， ISO9000 |
| Model Number: | PW-300E |
| Minimum Order Quantity: | 1set |
| Price: | ¥40000-60000/set |
| Packaging Details: | wooden cases |
| Delivery Time: | 20days |
| Payment Terms: | L/C, T/T, MoneyGram |
| Supply Ability: | 50 sets per month |
| Weight: | 450kg | Color: | Silver |
|---|---|---|---|
| Packing Material: | Composite Membrane | Encasement: | Wooden Case |
| Material: | Stainless Steel | ||
| High Light: | cookie packaging machine,food product packaging machine |
||

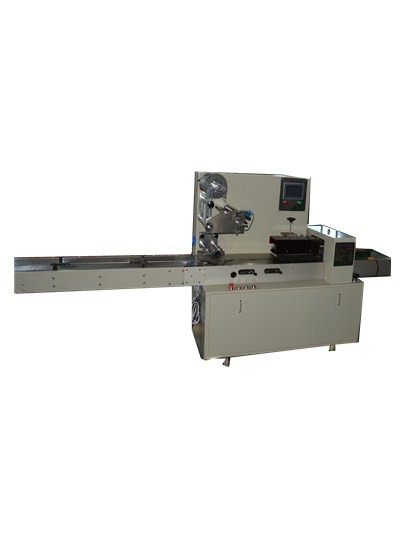

Automatic Stainless steel flow packing machine applicable for Peanut candy
The main performance and structure features:
1. The cutting and back sealing of the cutter seat: the seal is smooth and the indentation of the knife seat is clear.
2. Provide equipment requirements for power system and plant facilities in detail, and assist users to complete the design of installation drawings.
3. with high-end appliances, touch human-machine interface, convenient
parameter setting.
4. Clean rotation system, more reliable operation and more convenient maintenance.
5. the rotation system is simple, more reliable, more convenient maintenance.
6. The printer uses the ink wheel to code the code with three typesetting particles (including the production date, the validity period and the production batch number).
7. The equipment is controlled by a separate deceleration motor and connected to the frequency converter to separate the feed from the seal, and can be debugged and operated by itself.
scope of application:
Applicable to regular shaped objects Special packing for food like Peanut candy.
.
Technical parameter:
|
Finished package size (mm) |
Length | 40-500mm |
| Width | 30-110mm | |
| Height | 5-40mm | |
| Vertical and cross sealing strength (Nuton/mm2) | ＞15N/m㎡ | |
| Packaging speed bag/minute | 5-230Bags/min | |
| Packaging film width(mm) | 80-300mm | |
| Power specification | 220V50/60Hz2.4KVA | |
| Machine weight (kilogram) | 400kg | |
| Overall size (lengthXwidthXheight) | 3780×640×1560mm | |
