| Place of Origin: | china |
|---|---|
| Brand Name: | tengda |
| Certification: | CE， ISO9000 |
| Model Number: | PW-300E |
| Minimum Order Quantity: | 1set |
| Price: | ¥40000-60000/set |
| Packaging Details: | wooden cases |
| Delivery Time: | 20days |
| Payment Terms: | L/C, T/T, MoneyGram |
| Supply Ability: | 50 sets per month |
| Weight: | 450kg | Color: | Silver |
|---|---|---|---|
| Packing Material: | Composite Membrane | Encasement: | Wooden Case |
| Material: | Stainless Steel | ||
| High Light: | bakery packaging machine,food product packaging machine |
||

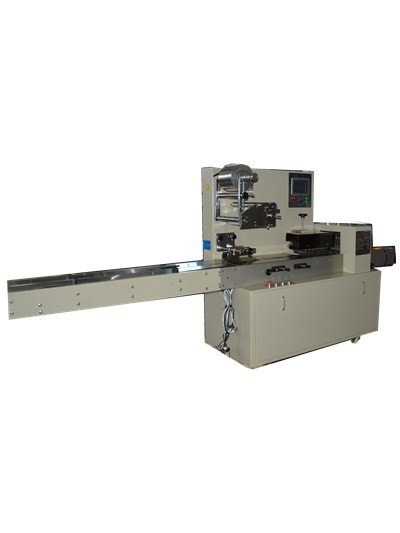

Automatic Stainless steel flow packing machine applicable for Jujube products
The main performance and structure features:
1. Fault self-diagnosis function, fault shows at a glance.positioning stop function, non-stick knives, at no cost.
2. All the controlling operates by the software, convenience for function adjustment and technical up grading.
3. with high-end appliances, touch human-machine interface, convenient
parameter setting.
4. The warranty period of this machine is at least 1 years, and the effective day is the completion date of the installation of the test car.
5. the rotation system is simple, more reliable, more convenient maintenance.
6. This machine dismantling maintenance tool contains a set of toolbox, and the material of the toolbox is in accordance with the requirements of the clean area.
7. Responsible for training basic knowledge of structure, principle, performance, operation, maintenance, troubleshooting and so on for technicians, operators and maintenance personnel, so that our personnel must be proficient and have two sides' recognition.
scope of application:
Applicable to regular shaped objects Special packing for food like Jujube products
.
Technical parameter:
|
Finished package size (mm) |
Length | 40-500mm |
| Width | 30-110mm | |
| Height | 5-40mm | |
| Vertical and cross sealing strength (Nuton/mm2) | ＞15N/m㎡ | |
| Packaging speed bag/minute | 5-230Bags/min | |
| Packaging film width(mm) | 80-300mm | |
| Power specification | 220V50/60Hz2.4KVA | |
| Machine weight (kilogram) | 400kg | |
| Overall size (lengthXwidthXheight) | 3780×640×1560mm | |
