Packaging Speed: | 5-230Bags/min | Weight: | 400kg |
---|---|---|---|
Color: | Milky White | Packing Material: | Composite Membrane |
Encasement: | Wooden Case | Material: | Stainless Steel |
High Light: | bakery packaging machine,food product packaging machine |

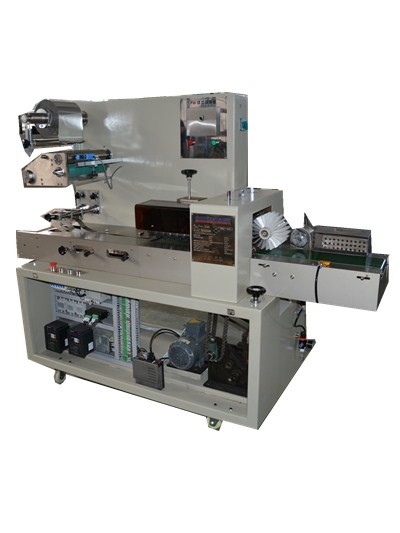

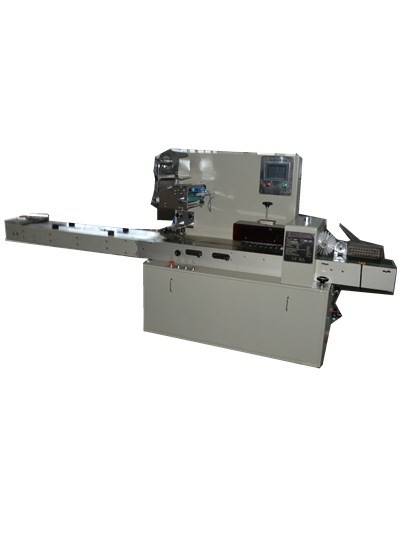

Automatic flour packing film width 80 - 300mm Special packing for food like vegetables and fruits
The main performance and structure features:
1.All the controlling operates by the software, convenience for function adjustment and technical up grading.
2. Clean rotation system, more reliable operation and more convenient maintenance.
3. with high-end appliances, touch human-machine interface, convenient
parameter setting.
4. fault self-diagnosis function, fault shows at a glance.positioning stop function, non-stick knives, at no cost.the rotation system is simple, more reliable, more convenient maintenance.
5. Servo blanking operation, convenient and fast, just in the screen operation.High sensor photoelectric color charttracking, make the cutting position more correctly.
scope of application:
Applicable to irregular non-standard shaped objects Special packing for food like vegetables and fruits
Technical parameter:
Finished package size (mm) |
Length | 40-500mm |
Width | 30-110mm | |
Height | 5-40mm | |
Vertical and cross sealing strength (Nuton/mm2) | >15N/m㎡ | |
Packaging speed bag/minute | 5-230Bags/min | |
Packaging film width(mm) | 80-300mm | |
Power specification | 220V50/60Hz2.4KVA | |
Machine weight (kilogram) | 400kg | |
Overall size (lengthXwidthXheight) | 3780×640×1560mm |
